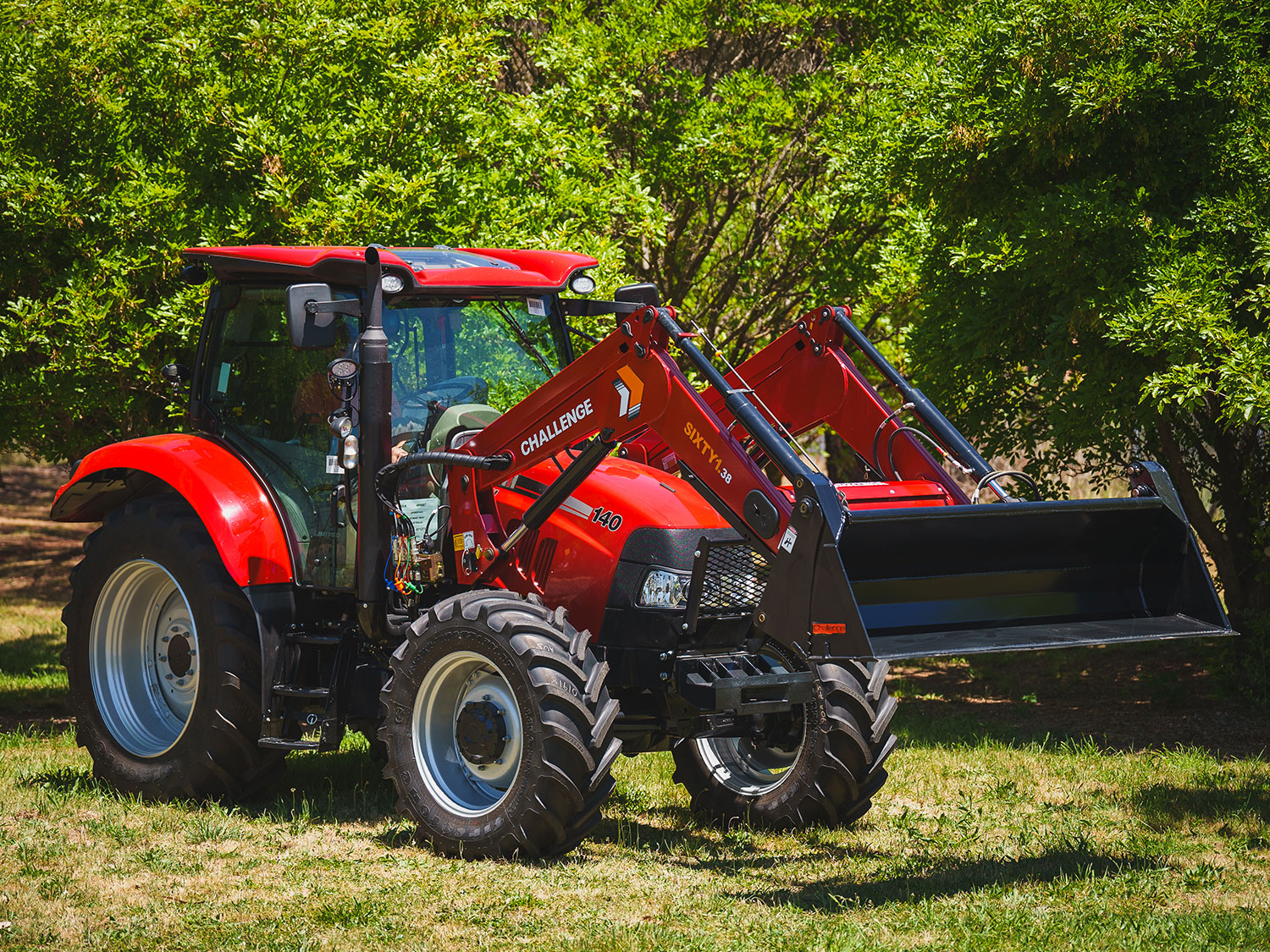

The Challenge SIXTY1 series front-end loaders provide customers with a front-end loader range that meets reliability, ease-of-use and performance requirements while also providing a more economical product for 55 to 290 horsepower agricultural tractor range.
Available Challenge loader kits for Case IH tractors; Case IH 3200 range, Case IH 4200 range, Case IH CX range, Case IH Farmall B range, Case IH Farmall C range, Case IH Farmall JX range, Case IH Farmall JXM range, Case IH Farmall U range, Case IH JX range, Case IH JX Straddlemount range, Case IH JXU range, Case IH Maxxfarm range, Case IH Maxxum range, Case IH Maxxum 5000 range, Case IH Maxxum Tier 4 CVT range, Case IH MX Maxxum range, Case IH MX-C range, Case IH MXM range, Case IH MXU range, Case IH Puma range, Case IH Quantum range.
Available Challenge loader kits for New Holland tractors; New Holland 8060 range, New Holland T4 Dual Command range, New Holland T4 Powerstar range, New Holland T4S range, New Holland T4000 range, New Holland T5 range, New Holland T5000 range, New Holland T6 range, New Holland T6000 range, New Holland T7 Tier 4A range, New Holland TD5 range, New Holland TDD range, New Holland TLA range, New Holland TM range, New Holland TNS range, New Holland TS range, New Holland TSA range, New Holland TT range, New Holland TT4 range, New Holland Workmaster range.
Available Challenge loader kits for John Deere tractors; John Deere 1600 range, John Deere 2000 range, John Deere 3050 range, John Deere 4040 range, John Deere 4050 range, John Deere 4055 range, John Deere 4060 range, John Deere 5000 range, John Deere 5010 range, John Deere 5003 range, John Deere 5020 range, John Deere 5025 range, John Deere 5D range, John Deere 5E range, John Deere 5M range, John Deere 5R range, John Deere 6000 range, John Deere 6010 range, John Deere 6020 range, John Deere 6030 range, John Deere 6D range, John Deere 6M range, John Deere 6MC range, John Deere 6R range, John Deere 6R Tier 4 range, John Deere 6RC range, John Deere 7000 range, John Deere 7010 range.
There are more tractor ranges available for our Challenge SIXTY1 series front-end loader. Contact us to see if we can fit a front-end loader to your tractor model.
Adjust the level of your front-end loader attachment with the simple self-levelling mechanism.
Detach your front-end loader with ease.
The Aus hitch quick coupler is a specifically designed attachment system used for coupling all attachments, using the Aus Hitch system, quickly and efficiently. The quick coupler uses a single lever action to disengage the locking pins from the attachment and has a spring return auto lock function when reattaching to an attachment. The Aus Hitch is designed with much larger and stronger locking pins in comparison to the Euro hitch system.
The Euro hitch quick coupler has been developed to allow those customers, who may have previously purchased European-style attachments that suit some of the European-manufactured loaders, the ability to retain those attachments and use them on their Challenge front-end loader. The quick coupler uses a single lever action to disengage the locking pins from the attachment and has a spring return auto lock function when reattaching to an implement.
The electric 3rd service allows the operator to remotely operate an additional hydraulic circuit on an attachment. This is controlled by the operator from a switch mounted on the joystick.
The electric 4th service allows the operator to remotely operate an additional hydraulic circuit on an attachment. This is controlled by the operator from a switch mounted on the joystick.
The use of multi-couplers increases operator ease-of-use when changing electric third and fourth service dependent implements from quick couplers. There are also multi-couplers available for easier hydraulic coupling of the front-end loader, on and off the host tractor.
The Challenge SIXTY1 series quick coupler has been designed to allow maximum vision when attaching implements to the quick coupler. With the carefully designed Easy Lock system fitted to your Challenge SIXTY1 series front-end loader, you never need to manually attach an implement to your front-end loader again.
Hydro ride provides a smoother, cushioned ride by reducing the energy transfer back and forth between the front-end loader and the tractor. The kit installs cleanly and does not restrict the operator’s vision.
| 3021 | SIXTY1.32 | SIXTY1.35 | SIXTY1.38 | SIXTY1.41 | |
|---|---|---|---|---|---|
| Tractor horse power (approximate) | 55-70 HP | 55-90 HP | 75-110 HP | 100-150 HP | 125 - 290 HP |
| (A) Maximum lift height to pivot pin | 3100 mm | 3256 mm | 3524 mm | 3825 mm | 4127 mm |
| (B) Maximum lift height under level bucket | 2810 mm | 2928 mm | 3196 mm | 3498 mm | 3799 mm |
| (C) Clearance with bucket dumped (see Note 1) | 2260 mm | 2308 mm | 2599 mm | 2900 mm | 3202 mm |
| (D) Reach at maximum lift height (see Note 2) | 1110 mm | 1300 mm | 1415 mm | 1548 mm | 1637 mm |
| (E) Maximum dump angle | 58° | 63° | 63° | 63° | 63° |
| (F) Reach with bucket on ground (see Note 3) | 2000 mm | 2230 mm | 2360 mm | 2500 mm | 2592 mm |
| (G) Maximum rollback angle | 49° | 49° | 49° | 48° | 48° |
| (H) Digging depth (see Note 4) | 150 mm | 186 mm | 186 mm | 187 mm | 187 mm |
| (J) Overall height in carry position | 1675 mm | 1728 mm | 1853 mm | 2003 mm | 2153 mm |
| (K) Maximum rollback angle at max. lift height | 49° | 52° | 52° | 52° | 52° |
| Lift capacity at pivot pin - ground level | 1584 kg | 2560 kg | 2680 kg | 2800 kg | 2920 kg |
| Lift capacity at pivot pin - max. lift height | 1380 kg | 2180 kg | 2280 kg | 2340 kg | 2410 kg |
| Lift capacity at 800mm from pivot pin - ground level | 1500 kg | 2270 kg | 2400 kg | 2520 kg | 2640 kg |
| Lift capacity at 800mm from pivot pin - 1.5m lift height | 1440 kg | 2210 kg | 2330 kg | 2440 kg | 2550 kg |
| Lift capacity at 800mm from pivot pin - max. lift height | 1000 kg | 2110 kg | 2210 kg | 2290 kg | 2380 kg |
| Bucket rollback force at ground height | 1100 kg | 2340 kg | 2820 kg | 3330 kg | 3860 kg |
| Maximum frame weight | 412 kg | 540 kg | 590 kg | 620 kg | 670 kg |
| Maximum front tyre size guide | 900-1048 mm | 1159 mm | 1265 mm | 1367 mm | 1485 mm |
| Maximum front tyre diameter guide | 9.5R24, 12.4R20, 320/85R20 | 12.4R24, 360/70R24 | 14.9R24, 460/70R24 | 14.9R28, 420/70R28 | 16.9R30, 480/70R30 |
[Note 1] Vertical distance from ground line to lowest point of cutting edge when bucket is dumped 45° and loader is fully raised.
[Note 2] Horizontal distance from tip of bucket cutting edge to centre line of tractor front wheels with loader fully-raised and bucket dumped at 45°.
[Note 3] Horizontal distance from tip of bucket cutting edge to centre line of tractor front wheels with bucket level on ground.
[Note 4] Digging depth can vary depending on fitted tractor tyre equipment.
[Disclaimer] Loader specifications may vary with tractor models, tyre sizes and/or hydraulic systems, and assume a hydraulic system capacity of 18.5 Mpa. To correctly ballast the tractor when used with a front-end loader, a three-point linkage counterweight must be fitted. Also refer to the tractor operators manual for weighting and ballasting information.
In 1962 a major product release gained immediate market acceptance and established the brand name 'Challenge' as implements of good design, robust in construction and offering value for money. Challenge always aims to provide quality implements that can withstand our harsh Australian conditions.
